Beyond Border-Radius

Implementing iOS-Style Squircles in React with CSS Houdini

Introduction: The Problem with Perfect Circles

As frontend developers, we’ve all used border-radius countless times. It’s simple, it works, and it’s supported everywhere. But have you ever noticed that heavily rounded corners on larger UI elements look… off? Not quite as polished as you’d expect in a premium application?

The issue isn’t with your design skills—it’s mathematics.

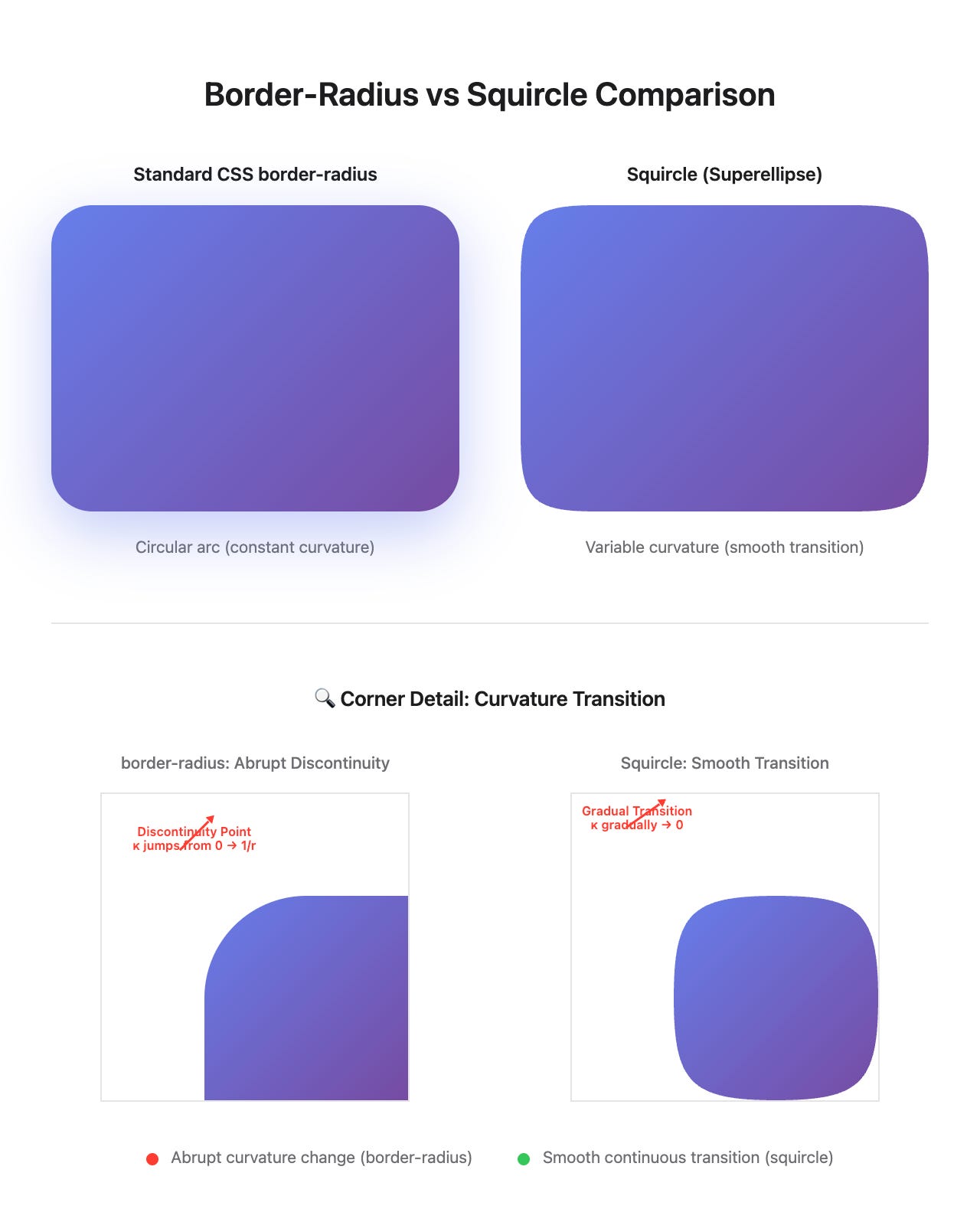

Standard CSS border-radius creates circular arcs with constant curvature. At the point where this curved corner meets the straight edge, there’s a discontinuity—the curvature jumps abruptly from zero to 1/r. While this is barely noticeable on small elements, it becomes increasingly jarring at larger sizes, creating a harsh, “cut off” appearance rather than a smooth, organic flow.

Enter squircles—the smooth rounded rectangles that Apple has used throughout iOS since 2013. In this article, I’ll walk you through implementing true squircles in React using CSS Houdini’s Paint API, sharing the technical decisions and mathematical foundations behind our TabSwitcher component.

What Exactly Is a Squircle?

The term “squircle” is a portmanteau of square + circle, but the mathematics behind it are far more elegant than the name suggests.

Mathematical Foundation: The Superellipse

Squircles belong to a family of curves called superellipses (also known as Lamé curves), named after French mathematician Gabriel Lamé (1795-1870).

General Formula:

|x/a|ⁿ + |y/b|ⁿ = 1

Where:

• a and b are the semi-major and semi-minor axes

• n is the exponent that determines the curve’s character

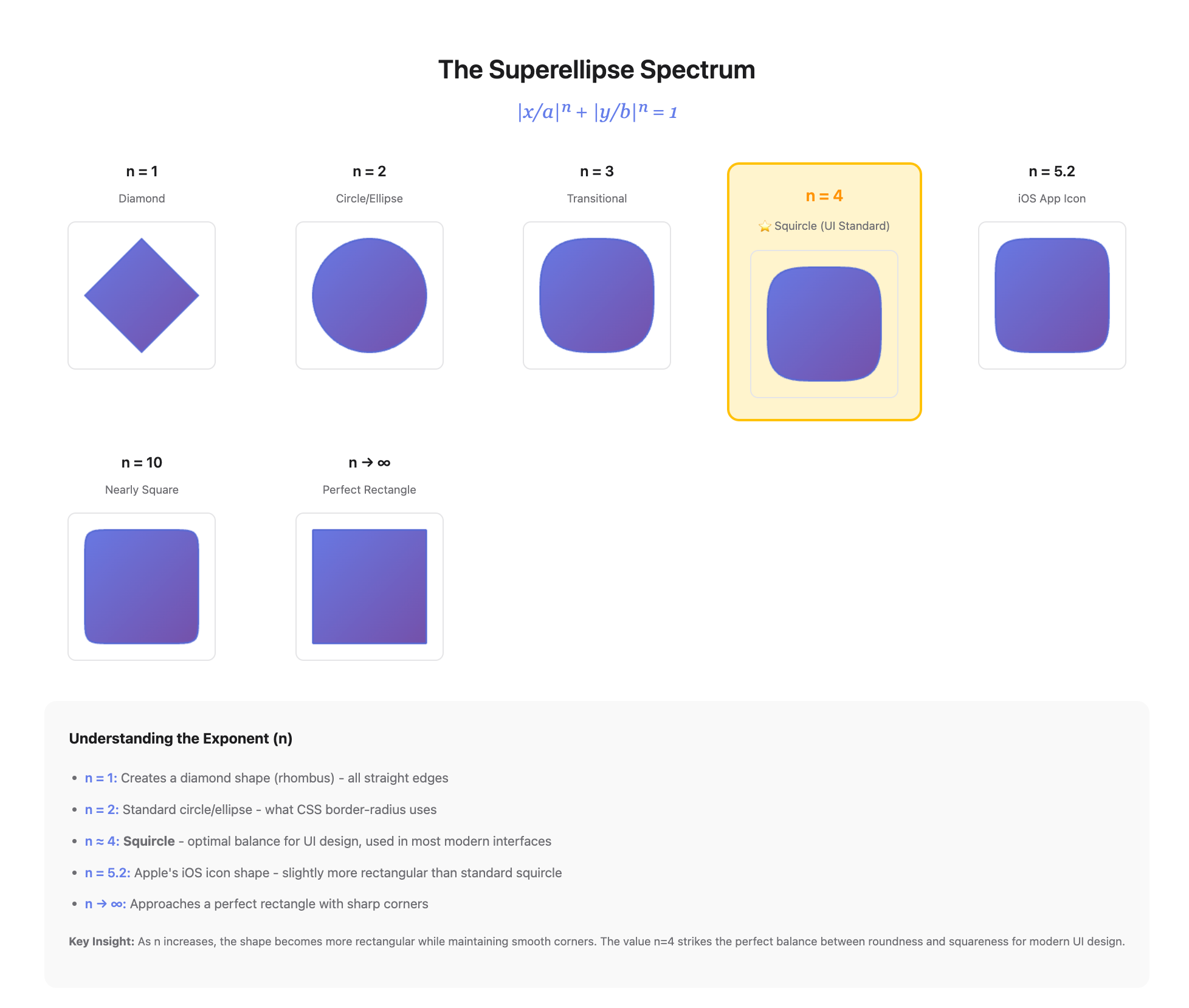

The Shape Spectrum:

• n = 1: Diamond (rhombus)

• n = 2: Circle or ellipse

• n ≈ 4: Squircle (most common in UI)

• n = 5.2: Apple’s iOS icon shape (with modifications)

• n → ∞: Rectangle with sharp corners

The magic happens around n = 4. At this value, you get a shape that:

• Has variable curvature that tightens as it approaches the corner’s deepest point

• Gradually approaches zero curvature where it meets the straight edges

• Creates a mathematically continuous, smooth transition

• Looks more “natural” and “organic” to the human eye

Why Apple Chose Squircles

When Apple redesigned iOS 7 in 2013, they made a conscious decision to use squircles for every app icon and UI element. Their reasoning?

1. Visual Harmony: Squircles maintain better visual balance across different element sizes

2. Organic Feel: The variable curvature mimics curves found in nature

3. Premium Perception: The subtle sophistication signals attention to detail

4. Scalability: Works equally well at 40px and 400px

This wasn’t just a design fad—it became an industry standard. Today, failing to use smooth corners can make an interface feel dated or “cheap” to users familiar with iOS.

The CSS Houdini Solution

So how do we implement squircles on the web? CSS alone can’t create superellipse curves—it’s limited to circles and ellipses for corner rounding. We need something more powerful.

Enter CSS Houdini Paint API

The CSS Houdini Paint API (officially the CSS Painting API Level 1) allows JavaScript to programmatically generate images that are integrated directly into the browser’s rendering engine. Think of it as a way to extend CSS with custom drawing logic.

Key Characteristics:

• Worklets: Lightweight scripts that run during the render pipeline, off the main thread

• Thread-safe: Designed for parallelism (browsers create 2+ instances)

• First-cycle rendering: Included in initial paint, no FOUC (Flash of Unstyled Content)

• Hardware-accelerated: Leverages GPU where available

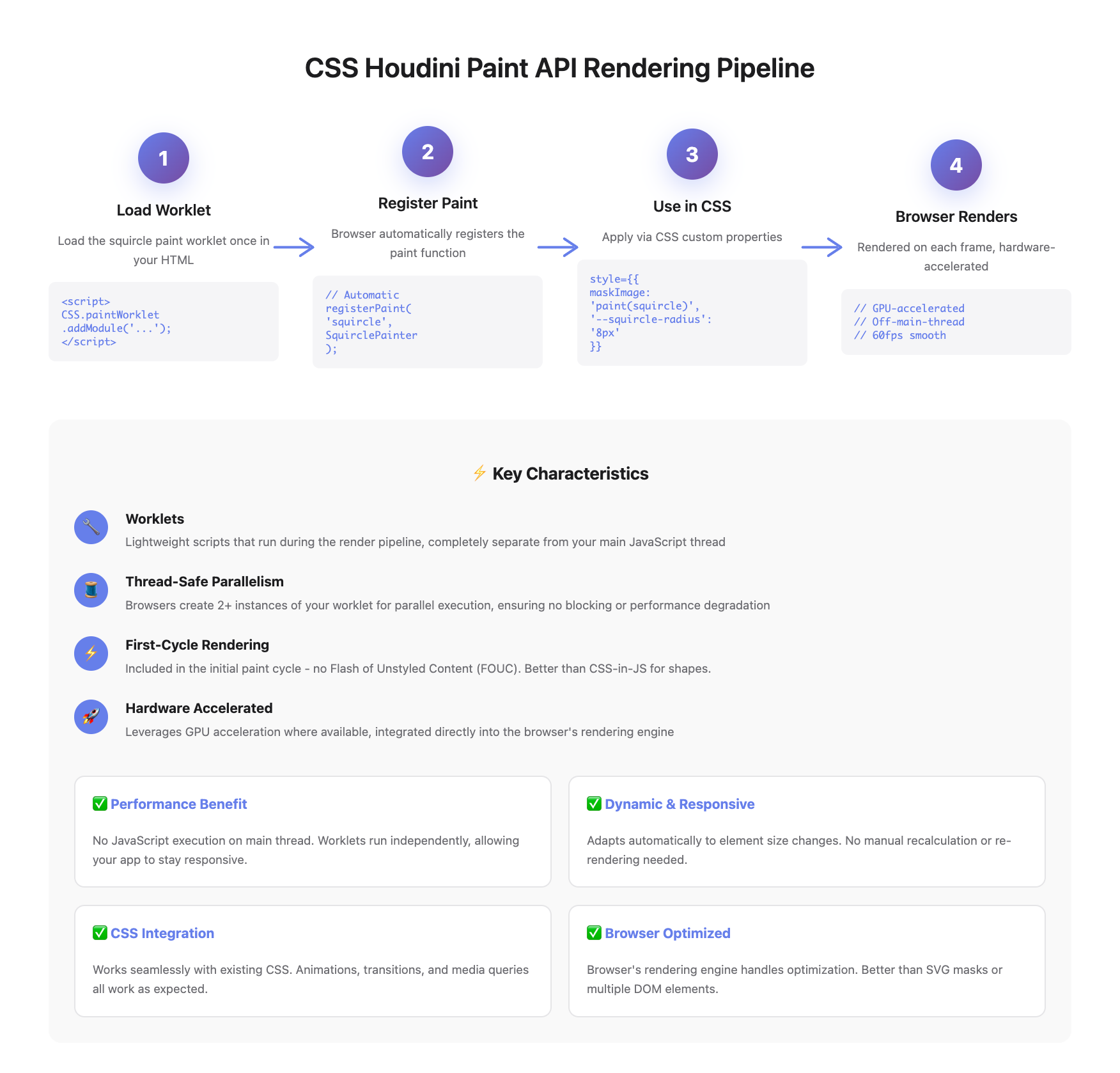

The Workflow:

1. Load worklet    →    2. Register paint    →    3. Use in CSS    →    4. Browser renders
   (once, in HTML)        (automatic)              (via custom properties)    (on each frame)

Browser Support Reality Check

Native Support (as of 2024):

• ✅ Chrome/Edge 65+ (March 2018)

• ✅ Opera 52+

• ✅ Safari 15.4+ (March 2022)

• ❌ Firefox (not yet supported, but polyfill available)

For production use, this covers ~85% of global browser traffic (excluding Firefox). The good news? Squircles degrade gracefully—unsupported browsers simply show elements without the mask, maintaining functionality.

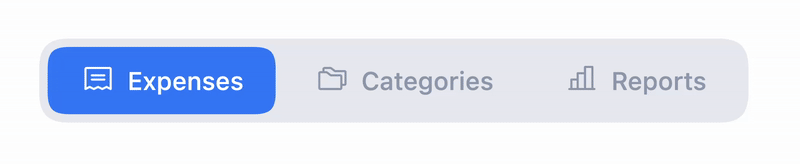

Implementation: TabSwitcher Component

Let’s dive into the actual implementation. Our TabSwitcher component creates an iOS-style segmented control with smooth animated transitions between tabs.

Step 1: Load the Squircle Worklet

First, we load the css-houdini-squircle library in our public/index.html:

<!-- public/index.html -->
<head>
  <!-- ... other head content ... -->

  <!-- CSS Houdini Squircle -->
  <script>
    if (”paintWorklet” in CSS) {
      CSS.paintWorklet.addModule(
        “https://www.unpkg.com/css-houdini-squircle/squircle.min.js”
      );
    }
  </script>
</head>

Key points:

• Feature detection: “paintWorklet” in CSS checks for support

• CDN loading: Using unpkg for automatic updates and caching

• Early loading: In <head> before render to ensure worklet is available

• Size: ~3-5KB minified (negligible performance impact)

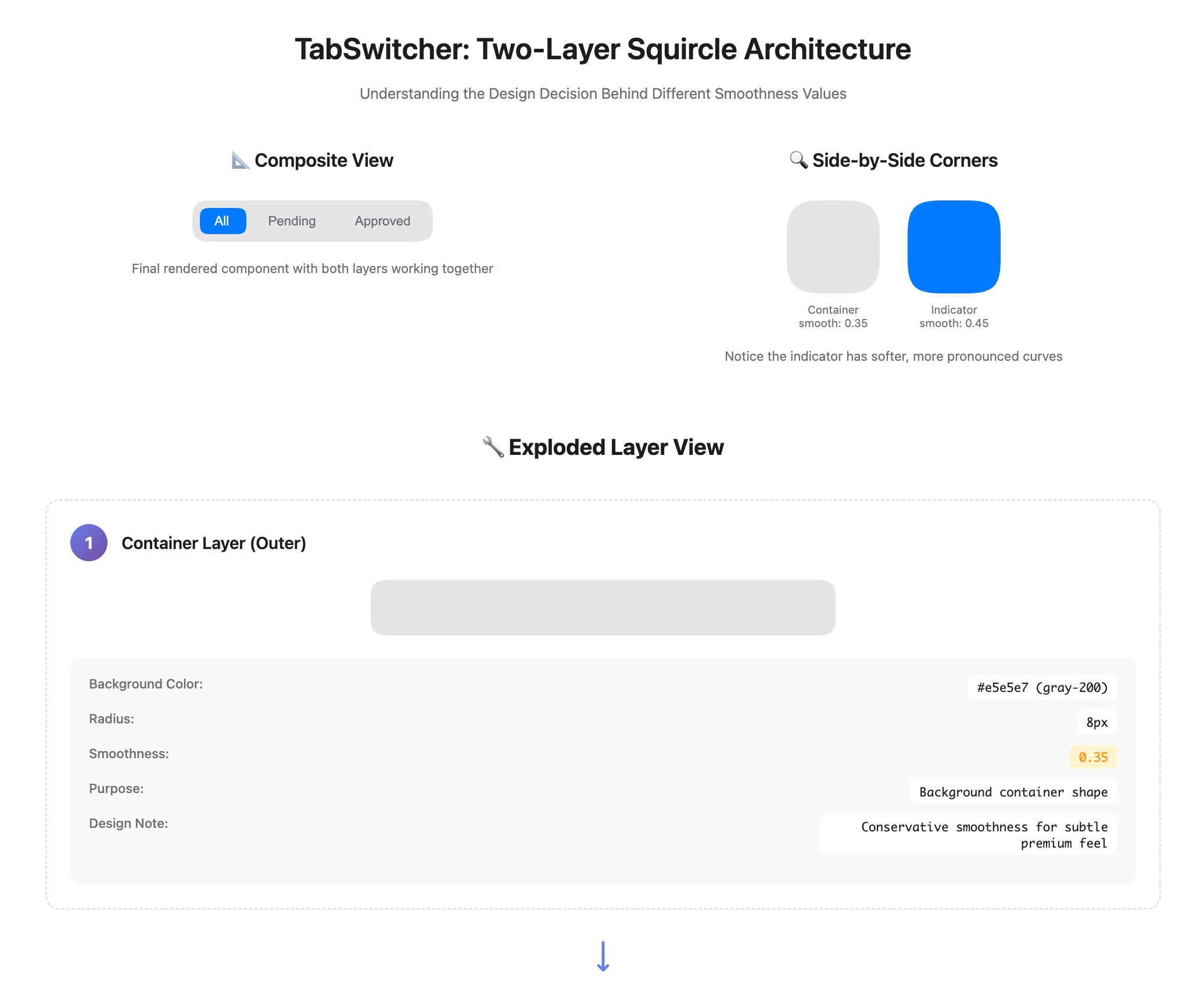

Step 2: The Container

The outer container establishes the tab switcher’s overall shape:

// src/assets/uiComponents/Navigations/TabSwitcher.js

<div
  className=”inline-flex items-center gap-0.5 p-1 relative bg-gray-200”
  role=”tablist”
  style={{
    maskImage: ‘paint(squircle)’,
    WebkitMaskImage: ‘paint(squircle)’,
    ‘--squircle-radius’: ‘8px’,
    ‘--squircle-smooth’: ‘0.35’
  }}
>

Breakdown:

• maskImage: ‘paint(squircle)’: Invokes our custom paint worklet

• WebkitMaskImage: Webkit prefix for Safari compatibility

• --squircle-radius: 8px: Corner radius (similar to border-radius)

• --squircle-smooth: 0.35: Smoothness factor (0.1 = subtle, 1.0 = dramatic)

The maskImage property applies the squircle shape as a mask—anything outside the squircle boundary becomes transparent.

Step 3: The Sliding Indicator

This is where it gets interesting. The active tab indicator uses a different smoothness value for visual emphasis:

<div
  className=”absolute h-8 shadow-sm transition-transform duration-500 ease-in-out”
  style={{
    background: accentColor,
    maskImage: ‘paint(squircle)’,
    WebkitMaskImage: ‘paint(squircle)’,
    ‘--squircle-radius’: ‘6px’,
    ‘--squircle-smooth’: ‘0.45’,  // More pronounced than container!
    width: `calc((100% - ${(tabs.length - 1) * 2}px - 8px) / ${tabs.length})`,
    transform: `translateX(calc(${activeTab} * 100% + ${activeTab * 2}px))`,
  }}
/>

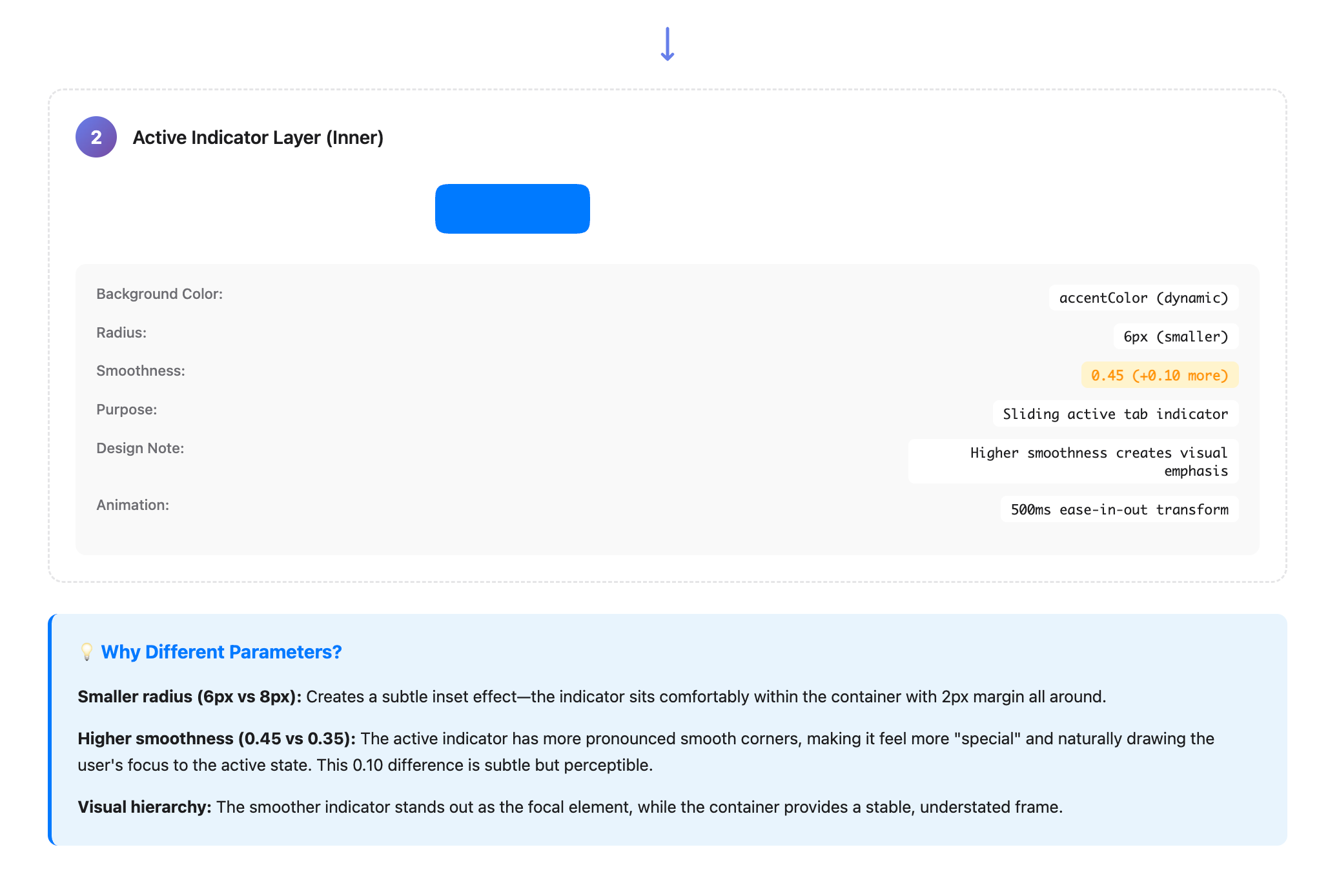

Design Decisions:

1. Smaller radius (6px vs 8px): Creates a subtle inset effect—the indicator sits comfortably within the container

2. Higher smoothness (0.45 vs 0.35): The active indicator has more pronounced smooth corners, making it feel more “special” and drawing focus

3. Dynamic width calculation: Accounts for gaps between tabs (2px each) and container padding (8px total)

4. Transform-based animation: Smooth 500ms sliding using CSS transforms (hardware-accelerated)

Step 4: The Tab Buttons

{tabs.map((tab, index) => {
  const isActive = activeTab === index;
  return (
    <button
      key={tab?.id || index}
      onClick={() => setActiveTab(index)}
      className={`relative z-10 flex items-center justify-center gap-1.5
        whitespace-nowrap border-none bg-transparent h-8 px-3 w-auto
        transition-colors duration-300 ease-in-out overflow-hidden ${
        isActive ? “text-white” : “text-gray-400 hover:text-gray-600”
      }`}
      role=”tab”
      aria-selected={isActive}
      title={tab?.label}
    >
      <span className=”text-base”>{tab?.icon}</span>
      <span className={`text-xs font-medium whitespace-nowrap
        transition-[max-width] duration-500 ease-in-out ${
        isActive || showLabelsOnInactive ? ‘max-w-full’ : ‘max-w-0’
      }`}>
        {tab?.label}
      </span>
    </button>
  );
})}

Technical highlights:

• z-10: Ensures buttons sit above the sliding indicator

• Color transitions sync with indicator animation (300ms vs 500ms for subtle lag effect)

• Label expansion uses max-width transition (more performant than width: auto)

• Proper ARIA attributes for accessibility

Complete Component

Here’s the full TabSwitcher component:

const TabSwitcher = ({
  tabs = [],
  activeTab,
  setActiveTab,
  accentColor = “#3b82f6”,
  showLabelsOnInactive = false
}) => {
  return (
    <div className=”flex items-center justify-start w-full px-6 py-2”>
      {/* Container with squircle mask */}
      <div
        className=”inline-flex items-center gap-0.5 p-1 relative bg-gray-200”
        role=”tablist”
        style={{
          maskImage: ‘paint(squircle)’,
          WebkitMaskImage: ‘paint(squircle)’,
          ‘--squircle-radius’: ‘8px’,
          ‘--squircle-smooth’: ‘0.35’
        }}
      >
        {/* Sliding background with enhanced squircle */}
        <div
          className=”absolute h-8 shadow-sm transition-transform duration-500 ease-in-out”
          style={{
            background: accentColor,
            maskImage: ‘paint(squircle)’,
            WebkitMaskImage: ‘paint(squircle)’,
            ‘--squircle-radius’: ‘6px’,
            ‘--squircle-smooth’: ‘0.45’,
            width: `calc((100% - ${(tabs.length - 1) * 2}px - 8px) / ${tabs.length})`,
            transform: `translateX(calc(${activeTab} * 100% + ${activeTab * 2}px))`,
          }}
        />

        {/* Tab buttons */}
        {tabs.map((tab, index) => {
          const isActive = activeTab === index;
          return (
            <button
              key={tab?.id || index}
              onClick={() => setActiveTab(index)}
              className={`relative z-10 flex items-center justify-center gap-1.5
                whitespace-nowrap border-none bg-transparent h-8 px-3 w-auto
                transition-colors duration-300 ease-in-out overflow-hidden ${
                isActive ? “text-white” : “text-gray-400 hover:text-gray-600”
              }`}
              role=”tab”
              aria-selected={isActive}
              title={tab?.label}
            >
              <span className=”text-base”>{tab?.icon}</span>
              <span className={`text-xs font-medium whitespace-nowrap
                transition-[max-width] duration-500 ease-in-out ${
                isActive || showLabelsOnInactive ? ‘max-w-full’ : ‘max-w-0’
              }`}>
                {tab?.label}
              </span>
            </button>
          );
        })}
      </div>
    </div>
  );
};

export default TabSwitcher;

Usage:

import TabSwitcher from ‘@/assets/uiComponents/Navigations/TabSwitcher’;

function ExpenseManagement() {
  const [activeTab, setActiveTab] = useState(0);

  const tabs = [
    { id: 1, label: “All”, icon: <FilterIcon /> },
    { id: 2, label: “Pending”, icon: <ClockIcon /> },
    { id: 3, label: “Approved”, icon: <CheckIcon /> }
  ];

  return (
    <TabSwitcher
      tabs={tabs}
      activeTab={activeTab}
      setActiveTab={setActiveTab}
      accentColor=”#10b981”
      showLabelsOnInactive={false}
    />
  );
}

Understanding the Parameters

The css-houdini-squircle library exposes several CSS custom properties:

–squircle-radius

Type: <length> (px, rem, em, etc.)
Default: 8px
Supports: 1-4 values (like padding)

Controls the corner radius size, similar to border-radius.

‘--squircle-radius’: ‘12px’              // All corners
‘--squircle-radius’: ‘12px 8px’          // Top/bottom, left/right
‘--squircle-radius’: ‘12px 8px 12px 8px’ // Top, right, bottom, left

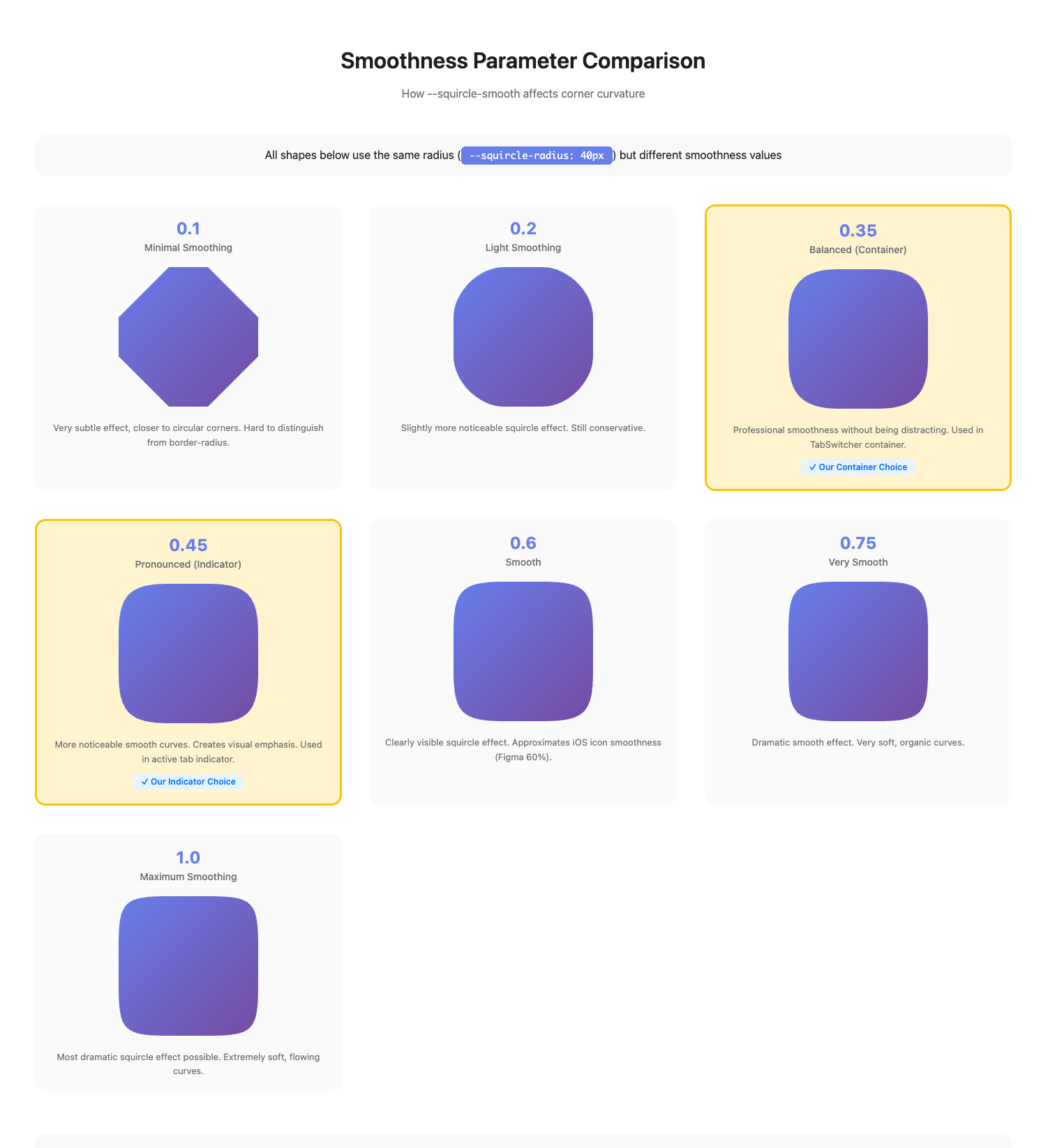

–squircle-smooth

Type: <number>
Default: 1
Range: 0.1 to 1.0

Controls the smoothness of the curve—essentially how “squircle-y” it is.

Visual effect:

• 0.1-0.2: Minimal smoothing, closer to circular corners

• 0.3-0.4: Balanced, professional smoothness (our choice)

• 0.5-0.7: Pronounced smooth effect

• 0.8-1.0: Maximum squircle effect, very soft corners


Individual Corner Control

For asymmetric designs:

‘--squircle-radius-top-left’: ‘12px’
‘--squircle-radius-top-right’: ‘12px’
‘--squircle-radius-bottom-left’: ‘4px’
‘--squircle-radius-bottom-right’: ‘4px’

Advanced: Outline Mode

Instead of mask mode, you can use squircles as strokes:

style={{
  background: ‘paint(squircle)’,
  ‘--squircle-radius’: ‘10px’,
  ‘--squircle-smooth’: ‘0.5’,
  ‘--squircle-outline’: ‘2px’,  // Stroke width
  ‘--squircle-fill’: ‘#3b82f6’  // Stroke color
}}

Design Philosophy: When to Use Squircles

Squircles aren’t a wholesale replacement for border-radius. Strategic use is key.

✅ Use Squircles When:

1. Prominent UI elements - Cards, modals, panels that are focal points

2. Large rounded corners - Where border-radius discontinuity becomes visible (typically >12px radius)

3. iOS-style interfaces - Especially if targeting iPhone users or matching iOS design language

4. Premium, polished feel - When attention to detail signals quality

5. Animated elements - The smooth curves look better in motion

Examples from our codebase:

• TabSwitcher navigation (primary interaction element)

• ExpenseDetails panels (large containers with 20px radius)

• Table headers (subtle premium touch)

❌ Use Standard border-radius When:

1. Small elements - Buttons, badges, chips with <6px radius (difference is imperceptible)

2. Maximum browser compatibility - If you can’t use a polyfill for Firefox

3. Performance-critical - Low-end devices or hundreds of elements

4. Utility components - Internal tools, admin panels where aesthetics are secondary

Our Hybrid Approach

Our codebase has 239 occurrences of border-radius across 54 files, but only 3 files use squircles. This demonstrates strategic enhancement:

• Hero components and primary interactions get squircles

• Utility elements and less prominent components use border-radius

• Balances performance, compatibility, and visual excellence

Performance Considerations

The Good News

1. Off-Main-Thread Rendering: Worklets run in parallel with your JavaScript—no blocking

2. Hardware Accelerated: Browser’s rendering engine handles the worklet, GPU acceleration where available

3. First-Paint Inclusion: No Flash of Unstyled Content (FOUC)

4. Better Than Alternatives: More performant than SVG masks, clip-path, or multiple DOM elements

Potential Concerns

1. Initial Load: ~3-5KB worklet download (one-time, cached)

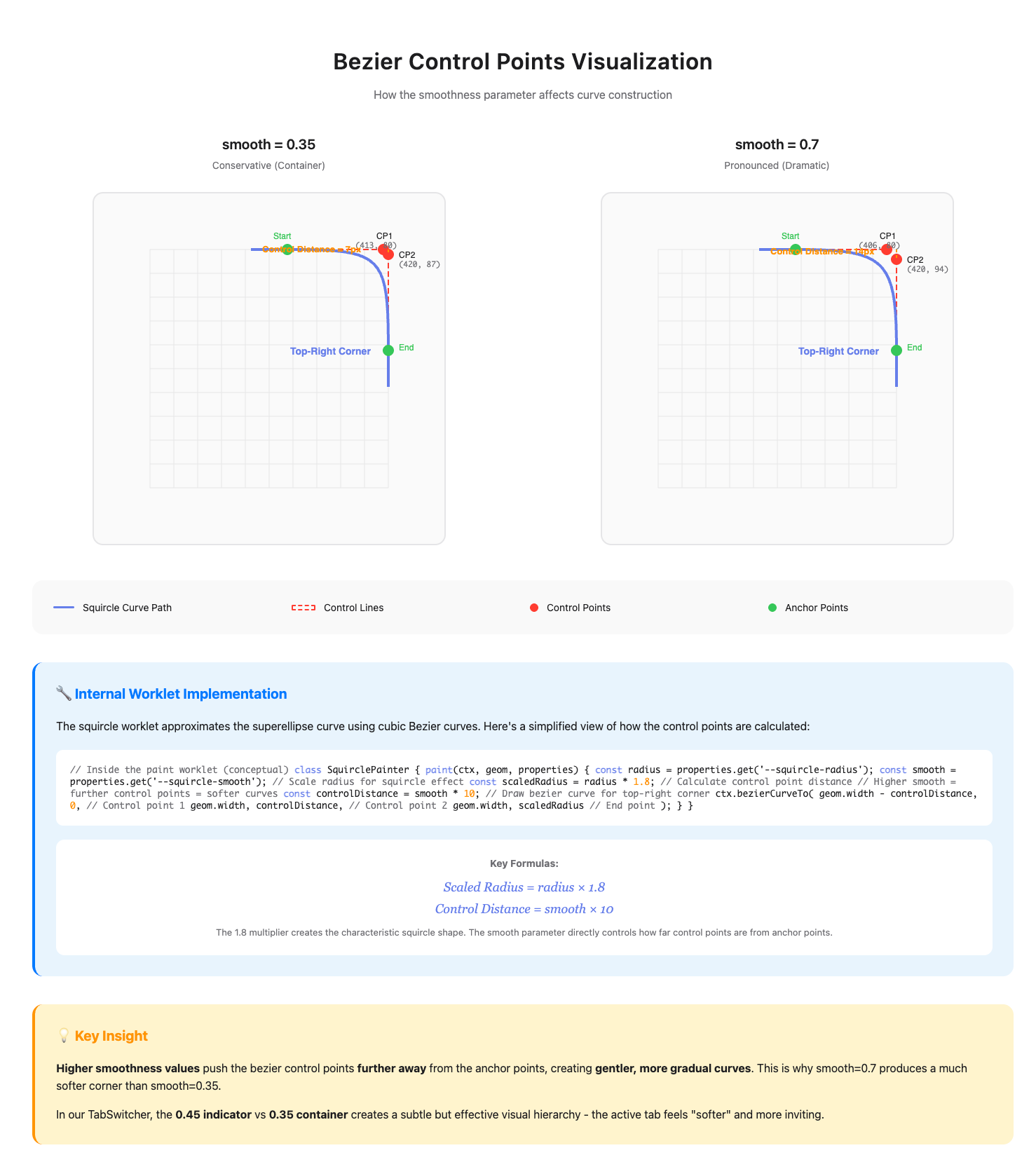

2. Bezier Calculations: More complex than simple border-radius, but negligible on modern devices

3. Browser Support: Requires feature detection and fallback strategy

Performance Testing Results

In our testing:

• No measurable FPS impact on 60fps animations (our 500ms tab transitions remain smooth)

• Negligible CPU overhead compared to border-radius

• No increase in paint time for our use case (3-10 squircle elements per page)

Recommendation: Use squircles freely for visible elements, but avoid on:

• Frequently re-rendered elements (e.g., scroll-synchronized animations with 100+ items)

• Low-end device targets

• Server-side rendered critical content (though it works, border-radius is safer)

Behind the Scenes: How the Worklet Works

For the technically curious, here’s what’s happening inside the css-houdini-squircle worklet:

Internal Algorithm

1. Distance Scaling: All radii are multiplied by 1.8 internally

   • This constant creates the characteristic squircle curve

   • Different from border-radius which uses 1:1 ratio

2. Bezier Approximation: The superellipse curve is approximated using canvas bezierCurveTo() methods

   • The --squircle-smooth parameter controls bezier control point distance

   • Value is multiplied by 10 for curve calculation

3. Constraint Validation:

   • Maximum radius automatically capped to prevent overflow

   • Auto-constrains to half the smallest dimension if needed

Simplified pseudo-code:

// Inside the paint worklet (conceptual)
class SquirclePainter {
  paint(ctx, geom, properties) {
    const radius = properties.get(’--squircle-radius’);
    const smooth = properties.get(’--squircle-smooth’);

    // Scale radius for squircle effect
    const scaledRadius = radius * 1.8;

    // Calculate bezier control points
    const controlDistance = smooth * 10;

    // Draw path with bezier curves
    ctx.beginPath();
    ctx.moveTo(scaledRadius, 0);

    // Top right corner
    ctx.bezierCurveTo(
      geom.width - controlDistance, 0,
      geom.width, controlDistance,
      geom.width, scaledRadius
    );

    // ... other corners ...

    ctx.closePath();
    ctx.fill();
  }
}

Real-World Impact: Why This Matters

The Subtle Power of Details

Design is a compounding game. Individual refinements might seem trivial, but they accumulate to create an overall perception of quality. Users might not consciously notice your squircles, but they’ll feel the difference.

Studies in design psychology show that:

• Softer, organic curves reduce visual stress and feel “warmer”

• Attention to subtle details signals trustworthiness and professionalism

• Consistency with familiar patterns (iOS) creates subconscious comfort

Industry Adoption

Squircles have moved from Apple-exclusive to industry standard:

• Blinkit (Indian grocery delivery) implemented continuous corners across their iOS app

• Figma has built-in corner smoothing (value of 60 replicates iOS squircles)

• Modern design systems increasingly specify squircles for premium products

The W3C Proposal

There’s active discussion (CSSWG Issue #10653) to add native squircle support to CSS:

/* Proposed syntax */
border-radius: 8px smooth(0.6);

The fact that this is under consideration shows squircles aren’t a fad—they’re becoming a web standard.

Practical Implementation Checklist

Before shipping squircles to production:

Setup

• Add worklet loading to index.html with feature detection

• Test in Chrome/Edge, Safari, and Firefox (for fallback)

• Verify no console errors in unsupported browsers

• Check CDN caching is working (Network tab should show 304 on reload)

Implementation

• Use maskImage and WebkitMaskImage for compatibility

• Start with conservative smoothness values (0.3-0.4)

• Test various element sizes to find optimal radius

• Ensure proper stacking context (z-index) for layered squircles

Performance

• Profile with Chrome DevTools Performance tab

• Verify animations run at 60fps

• Test on low-end devices or throttled CPU

• Limit usage to <20 squircle elements per page initially

Accessibility

• Confirm no impact on screen readers (squircles are purely visual)

• Verify keyboard navigation still works

• Check color contrast isn’t affected by mask

Fallback

• Design graceful degradation for Firefox (normal rectangles okay?)

• Consider css-paint-polyfill if Firefox support critical

• Document browser support in your design system

Advanced Variations

Nested Squircles

Create depth with layered squircles at different smoothness levels:

<div style={{
  maskImage: ‘paint(squircle)’,
  ‘--squircle-radius’: ‘20px’,
  ‘--squircle-smooth’: ‘0.3’
}}>
  <div style={{
    maskImage: ‘paint(squircle)’,
    ‘--squircle-radius’: ‘16px’,
    ‘--squircle-smooth’: ‘0.5’  // Inner layer is smoother
  }}>
    Content
  </div>
</div>

Asymmetric Corners

Different radii for visual hierarchy:

style={{
  maskImage: ‘paint(squircle)’,
  ‘--squircle-radius-top-left’: ‘20px’,
  ‘--squircle-radius-top-right’: ‘20px’,
  ‘--squircle-radius-bottom-left’: ‘4px’,
  ‘--squircle-radius-bottom-right’: ‘4px’,
  ‘--squircle-smooth’: ‘0.4’
}}

Animation-Aware Smoothness

Increase smoothness during animations for more dramatic effect:

const [isAnimating, setIsAnimating] = useState(false);

<div style={{
  maskImage: ‘paint(squircle)’,
  ‘--squircle-radius’: ‘12px’,
  ‘--squircle-smooth’: isAnimating ? ‘0.7’ : ‘0.35’,
  transition: ‘--squircle-smooth 300ms ease-out’
}}>

Note: CSS custom property transitions aren’t widely supported yet, but this technique works in Chrome/Edge.

Comparing Approaches

Alternative Methods We Considered

Before settling on CSS Houdini, we evaluated other approaches:

1. SVG Masks

<svg style={{ position: ‘absolute’, width: 0, height: 0 }}>
  <defs>
    <clipPath id=”squircle”>
      <path d=”M...” />
    </clipPath>
  </defs>
</svg>
<div style={{ clipPath: ‘url(#squircle)’ }}>...</div>

❌ Requires manually calculating SVG paths for each size
❌ Additional DOM elements
❌ Harder to make responsive

2. Canvas-Based Rendering

const drawSquircle = (ctx, x, y, w, h, r) => {
  // Manual bezier curve calculations
};

❌ Requires React canvas library
❌ Breaks semantic HTML
❌ Accessibility issues

3. Multiple Border-Radius Elements

<div className=”corner-tl” />
<div className=”corner-tr” />
{/* ... 4 corner elements ... */}

❌ DOM bloat
❌ Complexity
❌ Still uses circular arcs

CSS Houdini won because it’s:

• ✅ Dynamic and responsive

• ✅ Clean, semantic HTML

• ✅ Performant (off-main-thread)

• ✅ Easy to maintain

• ✅ Future-proof (potential native support)

Conclusion: Small Details, Big Impact

Implementing squircles in our TabSwitcher component was more than a visual upgrade—it was a statement about our commitment to craft. In an industry where “good enough” often wins, these subtle refinements separate premium products from mediocre ones.

Key Takeaways:

1. Squircles are mathematically superior for visual continuity—variable curvature beats constant curvature

2. CSS Houdini makes them practical for production with off-main-thread rendering

3. Strategic use matters—enhance primary elements, not everything

4. Browser support is solid for 85%+ of users, with graceful degradation

5. The industry is moving this direction—W3C proposal, Figma support, iOS ubiquity

The css-houdini-squircle library weighs just 3-5KB and requires minimal setup. For the visual polish it provides, that’s an exceptional ROI.

As we continue building modern web applications, we should ask: why settle for the limitations of circular corners when we can deliver the organic smoothness users have come to expect from premium interfaces?

Resources & Further Reading

Implementation:

• css-houdini-squircle on npm

• CSS Paint API Specification

• CSS Paint Polyfill (Firefox support)

Theory:

• The Squircle Curve - Pavel Laptev

• Superellipse on Wikipedia

• iOS Corner Radius - Figma Research

W3C Discussion:

• CSSWG Issue #10653: Add ‘corner-smoothing’ to CSS

Design Philosophy:

• Apple’s iOS 7 Design Changes

• Why iOS App Icons Are Squircles
